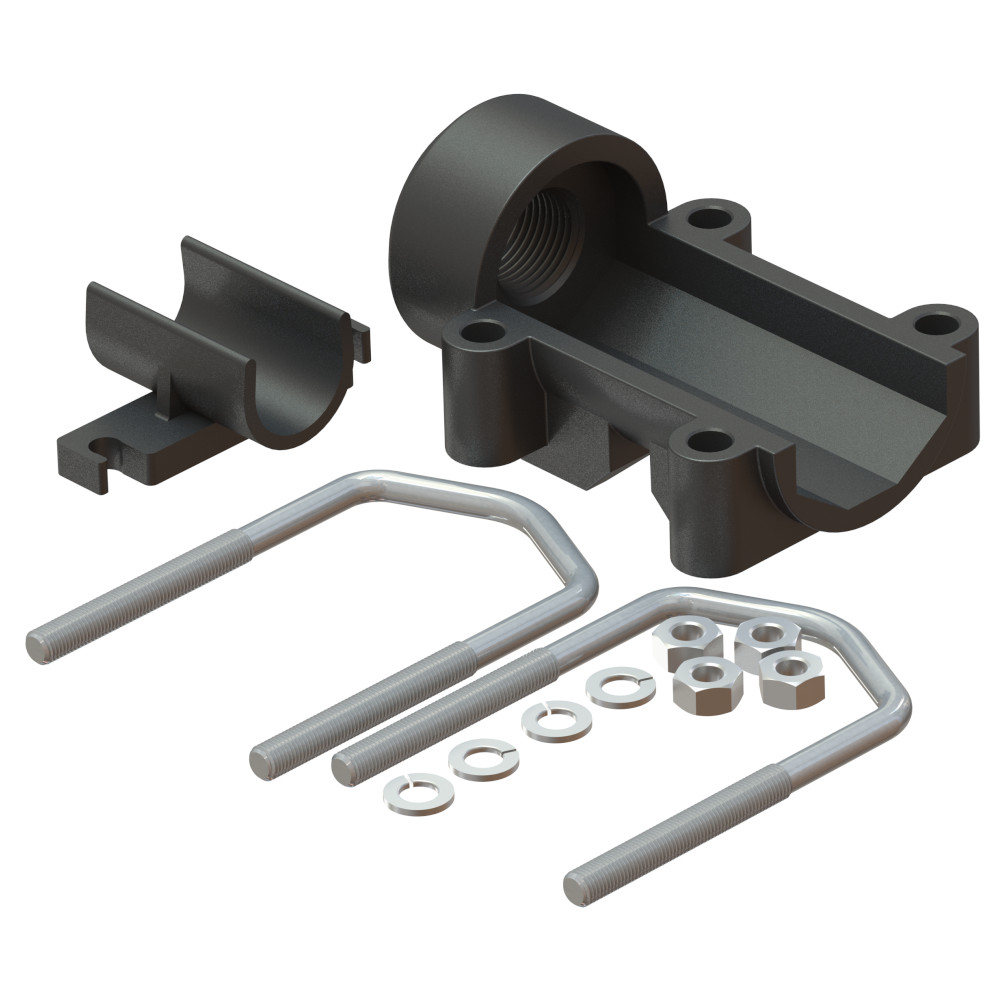

Heavy duty mast or rail mounting bracket for installation of all our antennas with 1”-14 threaded base on vertical or horizontal pole. The mount is made from PU powder coated diecast aluminium.
You can mount the bracket vertically overhead or alternatively on side of poles Ø 38 – 60 mm and horizontally on side beams Ø 30 – 60 mm. Moreover, there is the option to mount on a wall with screws (not supplied). Stainless steel hardware also included.
Ideal mount for commercial vessels with capability to affix to horizontal or vertical rails. 4G Connect Pro and WL510 antennas simply screw into top section. Also suits CX4A AIS tuned commercial antenna
Finally, please note you should protect the connector using adhesive lined heatshrink or self amalgamating tape.
